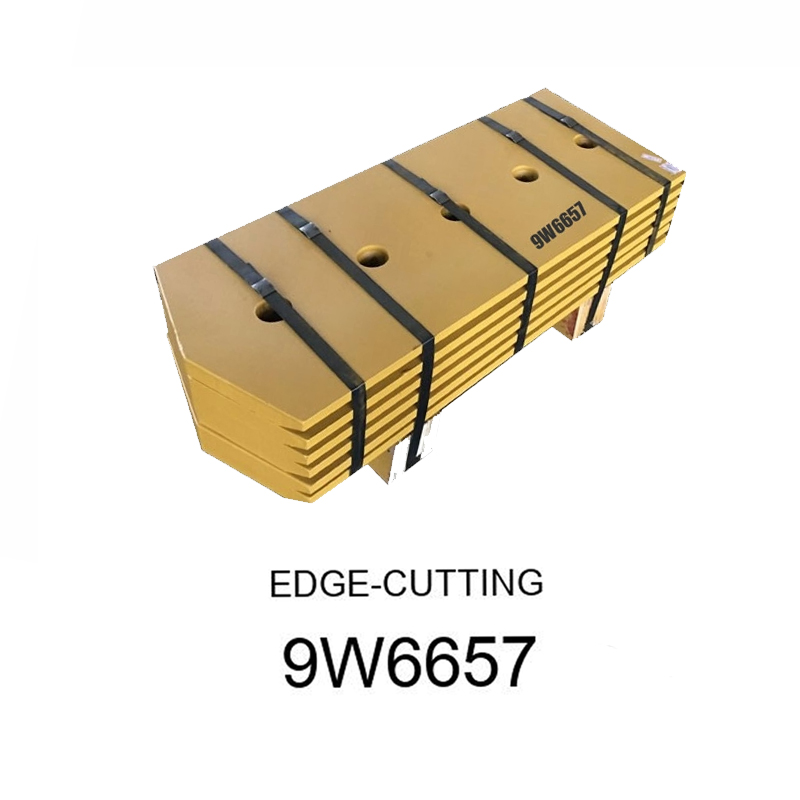

Cat Style 9W6657 Cutting Edges
Product Specification
| Product: | Motor Grader Blades,Cutting Edge, End Bits |
| Material: | Carbon steel/Boron steel |
| Production Process: | Heat Treatment/Machining |
| Color: | Yellow or as customers' request |
| Finish: | Smooth |
| Application: | Bulldozers,/Graders,/Loaders/Shovel |
| Certification: | ISO9001 |
| Offer customized Service : | Yes |
| Working conditions: | Mining &Construction &Road &Agricuture &Earth moving |
Our advantages
- Heat-Treated edges offer the best features like wear and impact resistance
- Offer complete range of edges and end bits for all makes and models of dozers—from small utility class up to the latest mining series.
- Our cutting edges and end bits are available in Standard duty, Extra heavy-duty
Cutting Edges and Blades, End Bits Compatible Model
| Grader blades | ||||||||
| Part No. | Dimension(mm) | Holes | Bolt size | Part No. | Dimension(mm) | Holes | Bolt size | |
| 5D9553 | 1828X152X16 | 13 | 5/8" | 4T2231 | 1828X203X25 | 13 | 3/4" | |
| 5D9554 | 2133X152X16 | 15 | 5/8" | 4T2233 | 2133x203x25 | 15 | 3/4" | |
| 5D9558 | 1828X203X19 | 13 | 5/8" | 4T2237 | 2438x203x25 | 17 | 5/8" | |
| 5D9559 | 2133X203X19 | 15 | 5/8" | 5B5564 | 1828x152x16 | 8 | 5/8" | |
| 5D9561 | 2133X203X16 | 15 | 5/8" | 5B5562 | 2133x152x16 | 9 | 5/8" | |
| 5D9562 | 1828X203X16 | 13 | 5/8" | 9W2301 | 2438x152x13 | 10 | 5/8" | |
| 7D1577 | 2133X203X19 | 15 | 3/4" | 9W2299 | 2133x152x13 | 9 | 5/8" | |
| 7D1949 | 2438X203X19 | 17 | 3/4" | 9W2302 | 2438x152x13 | 10 | 3/4" | |
| 7D1588 | 2133X203X16 | 15 | 3/4" | 9W2309 | 1219x203x13 | 6 | 5/8" | |
| 4T2244 | 1828X203X25 | 13 | 5/8" | 8J9821 | 2438x203x16 | 17 | 3/4" | |
| 4T2242 | 2133X203X25 | 15 | 5/8" | 9W2297 | 1828x152x13 | 8 | 5/8" | |
| 4T2236 | 2438X203X25 | 17 | 3/4" | 234-70-12670 | 2133x203x19 | 15 | 5/8" | |
| 9J3658 | 2133X152X16 | 15 | 3/4" | 234-70-12710 | 2133x203x16 | 15 | 3/4" | |
| 7D4508 | 1524X152X16 | 11 | 5/8" | 234-70-12193 | 2133x152x16 | 15 | 5/8" | |
| 5D9556 | 1828X152X19 | 13 | 5/8" | 4T3036 | 2133x203x19 | 15 | 5/8" | |
| 5D9557 | 2133X152X19 | 15 | 5/8" | 4T3007 | 1828x203x19 | 13 | 5/8" | |
| 3G7966 | 1524X152X19 | 11 | 5/8" | 4T3034 | 1524x203x19 | 11 | 5/8" | |
| 9J3657 | 1828X152X16 | 13 | 3/4" | 4T3037 | 2438x203x19 | 17 | 3/4" | |
| PS: The models above are just for reference, we can't list all models here. We can supply more products as your requirements. Please feel to contact with us. | ||||||||
| Grader curved cutting edge & Bulldozer cutting edge | |||
| Part No. | Main dimension (mm) | Holes | Dias. |
| 4T3007 | 1828*203*19 | 13 | 5/8" |
| 4T3032 | 2133*203*19 | 15 | 3/4" |
| 4T3036 | 2133*203*19 | 15 | 5/8" |
| 4T3037 | 2438*203*19 | 17 | 3/4" |
| 4T3034 | 1524*203*19 | 11 | 5/8" |
| 7T3497 | 1524*203*25 | 11 | 5/8" |
| 7T3498 | 2133*203*25 | 15 | 5/8" |
| 7T3499 | 1828*203*25 | 13 | 5/8" |
| 4T6502 | 1828*254*25 | 13 | 3/4" |
| 4T2948 | 1063*254*19 | 7 | 3/4" |
| 4T2989 | 1063*254*25 | 6 | 3/4" |
| 9W6658 | 851*406*45 | 6 | 1-1/4" |
| 9W3931 | 757*406*45 | 6 | 1-1/4" |
| 9W8215 | 1130*203*19 | 4 | 5/8" |
| 6Y5359 | 900*254*25 | 6 | 7/8" |
| 4T2985 | 802*254*25 | 6 | 3/4" |
| 4T2991 | 708*254*25 | 6 | 3/4" |
| 4T8081 | 2260*203*16 | 6 | 5/8" |
| 4T2979 | 2029*203*16 | 6 | 5/8" |
| 4T3009 | 1521*203*19 | 6 | 3/4" |
| 4T3004 | 1440*203*19 | 6 | 3/4" |
| 4T6659 | 1052*203*19 | 6 | 3/4" |
| 4T3013 | 1010*203*19 | 6 | 3/4" |
| 4T3029 | 992*203*19 | 6 | 5/8" |
| 4T3005 | 859*203*19 | 6 | 5/8" |
| 4T3006 | 808*203*19 | 6 | 5/8" |
| 1U4458 | 1064*406*35 | 6 | 1-1/4" |
| PS: The models above are just for reference, we can't list all models here. We can supply more products as your requirements. Please feel to contact with us. | |||
| Bulldozer End Bits | ||||||
| Part number (right) | Part number (left) | Length(mm) | Width(mm) | Thickness(mm) | Hole size | Hole quantity |
| 8E4193 | 8E4194 | 570 | 392 | 40 | 1" | 7 |
| 3G8315 | 3G8316 | 531 | 293 | 30 | 7/8" | 7 |
| 8E4197 | 8E4196 | 585 | 408 | 50 | 1" | 7 |
| 3G8295 | 3G8296 | 402 | 221 | 25 | 5/8" | 6 |
| 3G8297 | 3G8298 | 402 | 221 | 25 | 3/4" | 6 |
| 3G8321 | 3G8322 | 415 | 245 | 25 | 5/8" | 6 |
| 4T5407 | 4T5408 | 520 | 252 | 25 | 3/4" | 4 |
| 4T3043 | 4T3044 | 289.5 | 203 | 19 | 5/8" | 3 |
| 3G8319 | 3G8320 | 415 | 245 | 25 | 3/4" | 6 |
| 8E4193 | 8E4194 | 600 | 400 | 35 | 1" | 7 |
| 144-70-11260 | 144-70-11250 | 328 | 258 | 25 | 3/4" | 5 |
| 17M-71-21940 | 17M-71-21930 | 698 | 387 | 40 | 1" | 7 |
| 195-71-11183 | 195-71-11173 | 683 | 429 | 40 | 1" | 7 |
| 175-71-22282 | 175-71-22272 | 540 | 315 | 40 | 7/8" | 7 |
| 175-70-21136 | 175-70-21126 | 482 | 320 | 40 | 7/8" | 7 |
| 150-70-21346 | 150-70-21356 | 435 | 254 | 30 | 3/4" | 6 |
| 13F-Z27-1572 | 13F-Z27-1582 | 325 | 204 | 25 | 3/4" | 5 |
| PS: The models above are just for reference, we can't list all models here. We can supply more products as your requirements. Please feel to contact with us. | ||||||
| Motor Grader End Bits | |||||
| Part number | Length(mm) | Width(mm) | Thickness(mm) | Hole size | Hole quantity |
| 6D1904 | 468 | 235 | 13 | 5/8'' | 8 |
| 6D1948 | 550 | 229 | 13 | 5/8'' | 8 |
| 6Y2805 | 552.9 | 235 | 13 | 3/4'' | 8 |
| 7D9999 | 597 | 235 | 13 | 3/4'' | 8 |
| 8E5529 | 477.2 | 152 | 16 | 3/4'' | 5 |
| 8E5531 | 467 | 152 | 16 | 5/8'' | 5 |
| 9J4406 | 474.5 | 152 | 16 | 3/4'' | 4 |
| 232-70-52180 | 481.8 | 152 | 16 | 5/8'' | 5 |
| 232-70-52190 | 482.6 | 229 | 13 | 5/8'' | 6 |
| 234-70-32240 | 621.1 | 279.4 | 13 | 3/4'' | 6 |
| PS: The models above are just for reference, we can't list all models here. We can supply more products as your requirements. Please feel to contact with us. | |||||
Compatible Brands
Our Factory
Xiamen Gold Forging Industry Co,.Ltd as professional and your reliable G.E.T supplier, providing full range of replacement spare parts suitbale for all kinds of earthmoving equipments, most of them are applied in mining, construction, agricultural etc.
We are one-stop factory which supply replacement parts including bucket teeth, bucket adapter, lip shroud, protector, ripper shank, cutting edges, grader blades, end bits, especially bucket teeth and adapter, we using forging process to make the product have better mechanical properties and wear resistance.
For connect parts, like bucket pin, bucket teeth pin, bolt and nuts, we can offer at the same time.
Our parts cover machine brands included Caterpillar, Komatsu, Volvo, Daewoo, Doosan, Hyundai, Kobelco, JCB, Case etc.
Since 2007, Gold Forging insist on offer best service and best products to our client, continuously provide service quality, improve production, and make customers more satisfied with us.
Trust Gold Forging, you can get more!
