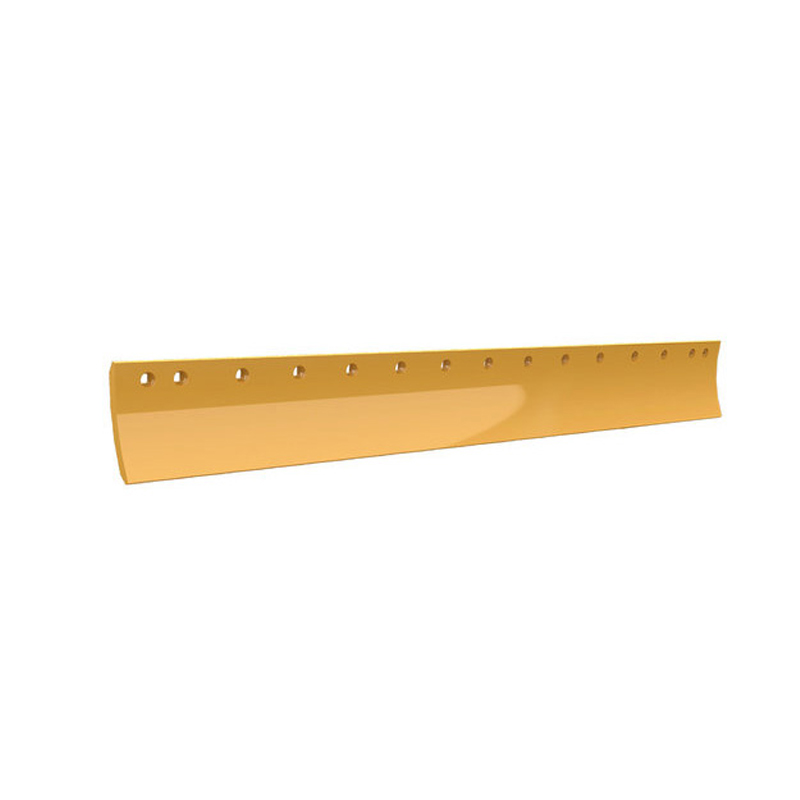

Grader Blades 5D9558 Curved Cutting Edges

We offer high quality replacement curved grader blades 5D9558, 5D9559 for Caterpillar Machine.
  • Gold Forging

  • 5D9558

  • China

Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Product Specification

Product:  Motor Grader Blades,Cutting Edge, End Bits
Material:  Carbon steel/Boron  steel
Production  Process:  Heat  Treatment/Machining
Color: Yellow or as  customers' request
Finish: Smooth
Application:  Bulldozers,/Graders,/Loaders/Shovel
Certification: ISO9001
Offer  customized Service : Yes
Working  conditions: Mining  &Construction &Road &Agricuture &Earth moving



Our advantages


  • Spare part 5D9558 GRADER BLADE belongs to the Ground Engaging Tools

  • Curved edges penetrate the roadway better than flat edges while carrying existing material forward to leave a smooth even surface

  • Good appearance, longer wear life, better reliability, thicker cutting edges provide added strength and wear material for abrasive or high impact applications


cutting edges




motor grader blades


Cutting Edges and Blades, End Bits Compatible Model


Grader  blades
Part No. Dimension(mm) Holes Bolt size Part No. Dimension(mm) Holes Bolt size
5D9553 1828X152X16 13 5/8" 4T2231 1828X203X25 13 3/4"
5D9554 2133X152X16 15 5/8" 4T2233 2133x203x25 15 3/4"
5D9558 1828X203X19 13 5/8" 4T2237 2438x203x25 17 5/8"
5D9559 2133X203X19 15 5/8" 5B5564 1828x152x16 8 5/8"
5D9561 2133X203X16 15 5/8" 5B5562 2133x152x16 9 5/8"
5D9562 1828X203X16 13 5/8" 9W2301 2438x152x13 10 5/8"
7D1577 2133X203X19 15 3/4" 9W2299 2133x152x13 9 5/8"
7D1949 2438X203X19 17 3/4" 9W2302 2438x152x13 10 3/4"
7D1588 2133X203X16 15 3/4" 9W2309 1219x203x13 6 5/8"
4T2244 1828X203X25 13 5/8" 8J9821 2438x203x16 17 3/4"
4T2242 2133X203X25 15 5/8" 9W2297 1828x152x13 8 5/8"
4T2236 2438X203X25 17 3/4" 234-70-12670 2133x203x19 15 5/8"
9J3658 2133X152X16 15 3/4" 234-70-12710 2133x203x16 15 3/4"
7D4508 1524X152X16 11 5/8" 234-70-12193 2133x152x16 15 5/8"
5D9556 1828X152X19 13 5/8" 4T3036 2133x203x19 15 5/8"
5D9557 2133X152X19 15 5/8" 4T3007 1828x203x19 13 5/8"
3G7966 1524X152X19 11 5/8" 4T3034 1524x203x19 11 5/8"
9J3657 1828X152X16 13 3/4" 4T3037 2438x203x19 17 3/4"
PS: The models above are just for reference, we can't list all  models here. We can supply more products as your requirements. Please feel to  contact with us.


Grader curved cutting edge & Bulldozer cutting  edge
Part No. Main dimension (mm) Holes         Dias.
4T3007 1828*203*19 13 5/8"
4T3032 2133*203*19 15 3/4"
4T3036 2133*203*19 15 5/8"
4T3037 2438*203*19 17 3/4"
4T3034 1524*203*19 11 5/8"
7T3497 1524*203*25 11 5/8"
7T3498 2133*203*25 15 5/8"
7T3499 1828*203*25 13 5/8"
4T6502 1828*254*25 13 3/4"
4T2948 1063*254*19 7 3/4"
4T2989 1063*254*25 6 3/4"
9W6658 851*406*45 6 1-1/4"
9W3931 757*406*45 6 1-1/4"
9W8215 1130*203*19 4 5/8"
6Y5359 900*254*25 6 7/8"
4T2985 802*254*25 6 3/4"
4T2991 708*254*25 6 3/4"
4T8081 2260*203*16 6 5/8"
4T2979 2029*203*16 6 5/8"
4T3009 1521*203*19 6 3/4"
4T3004 1440*203*19 6 3/4"
4T6659 1052*203*19 6 3/4"
4T3013 1010*203*19 6 3/4"
4T3029 992*203*19 6 5/8"
4T3005 859*203*19 6 5/8"
4T3006 808*203*19 6 5/8"
1U4458 1064*406*35 6 1-1/4"

PS: The models  above are just for reference, we can't list all models here. We can supply  more products as your requirements. Please feel to contact with us.



Bulldozer  End Bits
Part number  (right) Part number (left) Length(mm) Width(mm) Thickness(mm) Hole size Hole quantity
8E4193 8E4194 570 392 40 1" 7
3G8315 3G8316 531 293 30 7/8" 7
8E4197 8E4196 585 408 50 1" 7
3G8295 3G8296 402 221 25 5/8" 6
3G8297 3G8298 402 221 25 3/4" 6
3G8321 3G8322 415 245 25 5/8" 6
4T5407 4T5408 520 252 25 3/4" 4
4T3043 4T3044 289.5 203 19 5/8" 3
3G8319 3G8320 415 245 25 3/4" 6
8E4193 8E4194 600 400 35 1" 7
144-70-11260 144-70-11250 328 258 25 3/4" 5
17M-71-21940 17M-71-21930 698 387 40 1" 7
195-71-11183 195-71-11173 683 429 40 1" 7
175-71-22282 175-71-22272 540 315 40 7/8" 7
175-70-21136 175-70-21126 482 320 40 7/8" 7
150-70-21346 150-70-21356 435 254 30 3/4" 6
13F-Z27-1572 13F-Z27-1582 325 204 25 3/4" 5
PS: The models  above are just for reference, we can't list all models here. We can supply  more products as your requirements. Please feel to contact with us.


Motor  Grader End Bits
Part number Length(mm) Width(mm) Thickness(mm) Hole size Hole quantity
6D1904 468 235 13 5/8'' 8
6D1948 550 229 13 5/8'' 8
6Y2805 552.9 235 13 3/4'' 8
7D9999 597 235 13 3/4'' 8
8E5529 477.2 152 16 3/4'' 5
8E5531 467 152 16 5/8'' 5
9J4406 474.5 152 16 3/4'' 4
232-70-52180 481.8 152 16 5/8'' 5
232-70-52190 482.6 229 13 5/8'' 6
234-70-32240 621.1 279.4 13 3/4'' 6
PS: The models  above are just for reference, we can't list all models here. We can supply  more products as your requirements. Please feel to contact with us.




At Gold Forging, our grader blades are engineered for superior performance and durability, making them an essential tool for any grading application. Crafted from high-quality materials, these blades are designed to withstand extreme wear and tear, ensuring long-lasting reliability even in the toughest conditions.

Precision Engineering

Our grader blades undergo rigorous quality control and precision engineering processes. This ensures that each blade meets the highest standards for performance and compatibility with various grading machines. Whether you are leveling surfaces or maintaining roads, our blades provide the precision you need for effective results.

Customization Options

We understand that every project has unique requirements. That’s why Gold Forging offers customization options for our grader blades. From different sizes to specific mounting configurations, we work closely with our clients to develop blades that perfectly fit their machinery and project needs.

Competitive Pricing and Excellent Service

Gold Forging is committed to providing unmatched value, combining high-quality products with competitive pricing. Our dedicated customer service team is always ready to assist you, offering expert advice and support throughout your purchasing process.


Choose Gold Forging for your grader blades and experience the perfect blend of quality, performance, and service tailored to your needs.
