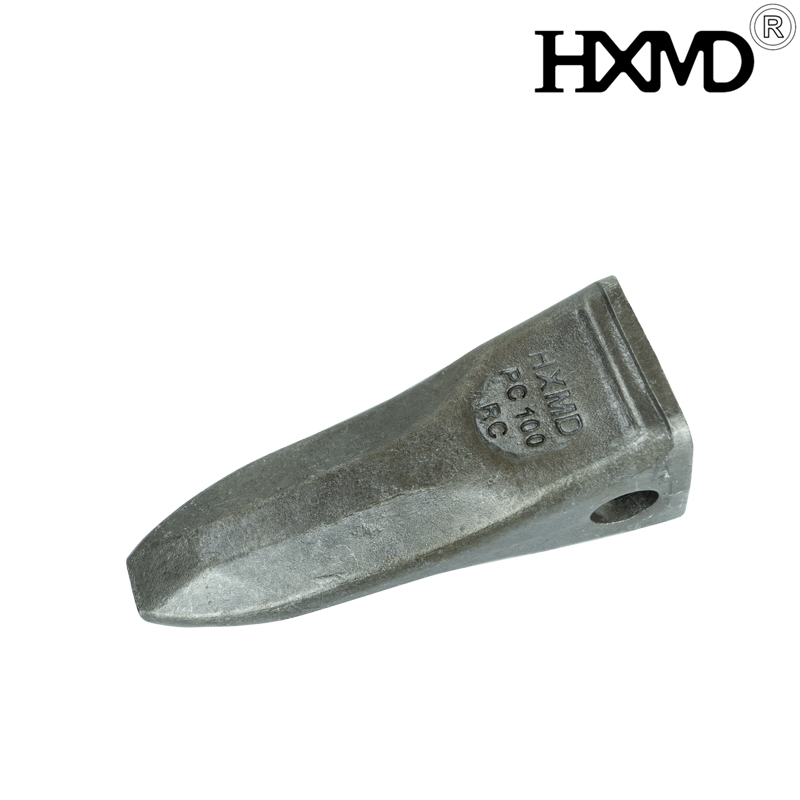

Komatsu PC100 Drilling Trackhoe Bucket Teeth 20X-70-14160RC

Advantages of using bucket teeth

✴Bucket wear protection protects the bucket edge from dust and stone impact.

✴It can provide operators with better edge sharpness and penetration to increase the bucket's loading capacity.

✴Excellent impact absorption when digging rock beds or hard clay.

How to choose the right bucket teeth for your excavator and how to install it? see below methods

1. Find your excavator brand and model

2. Find Part No.in bucket teeth surface

3. In the case that options 1 and 2 do not work. Measure the dimensions of 3 positions a,b,c to the us for confirm. Tooth cavity size measurement parameters

Direct installation:

refers to the vertical installation of the bucket tooth pin and the front of the excavator bucket tooth

Horizontal installation: refers to the installation of the bucket tooth pin parallel to the front of the excavator bucket tooth

How to avoid bucket tooth damage due to abrasive wear

✱During excavation, the outermost bucket teeth on both sides lose 30% more wear than the innermost teeth. After using it for a period of time, it is best to change the positions of the innermost and outermost bucket teeth.

✱The operator should pay attention to the excavation angle when operating the excavator, which should be perpendicular to the surface of the object to prevent the bucket teeth from breaking due to excessive tilt.

✱When the resistance is large, the excavator arm should not swing in the horizontal direction, otherwise the horizontal force will be too large, which may easily cause the bucket teeth and bucket seat to break.

✱The wear condition of the bucket tooth seat is also a key issue affecting the service life of the excavator bucket teeth. It is best to replace the bucket tooth seat when the wear amount reaches 10%, because the large gap caused by wear will change the stress point between the bucket tooth seat and the bucket teeth, which may cause the bucket teeth to break.

✱Operation methods also play a very important role in improving the utilization rate of bucket teeth. Excavator operators should pay special attention to the coordination of operations to avoid damage caused by the bucket hitting rocks.

https://www.goldforging.com/Komatsu-PC100-Drilling-Trackhoe-Bucket-Teeth-20X-70-14160RC-pd43450500.html

Forging, which involves shaping metal under high pressure and temperature, enhances the metal's structural integrity. This process aligns the grain structure of the metal, resulting in a bucket tooth that is inherently stronger and more resilient to the stresses of excavation work.

Forged bucket teeth are forged from high-strength alloy steel materials, have high strength and hardness, can withstand large impact and pressure, and are suitable for various excavation operations.

1.Our company is an integration of industry and trade, and can provide high-quality products that are closest to the cost price.

2.All of our products are forging, Forged bucket teeth have good structure, high mechanical properties, more wear resistance and long service life.

3.Complete production process system, experienced workers to ensure high quality in the process.

4.More than half of our products are exported with good feedback and reputation.

5.Professional sales team at your service, online 24 hours a day.

6.The patient after-sales staff will quickly and professionally solve your problems.

The bucket tooth is the terminal of the excavator's working device. In the process of mining, the bucket tooth is the working part with the largest load. It belongs to the consumable parts, especially in the stone construction environment, the bucket tooth wear speed is particularly fast. The use of bucket teeth can directly affect the work efficiency and production cost of excavators.
